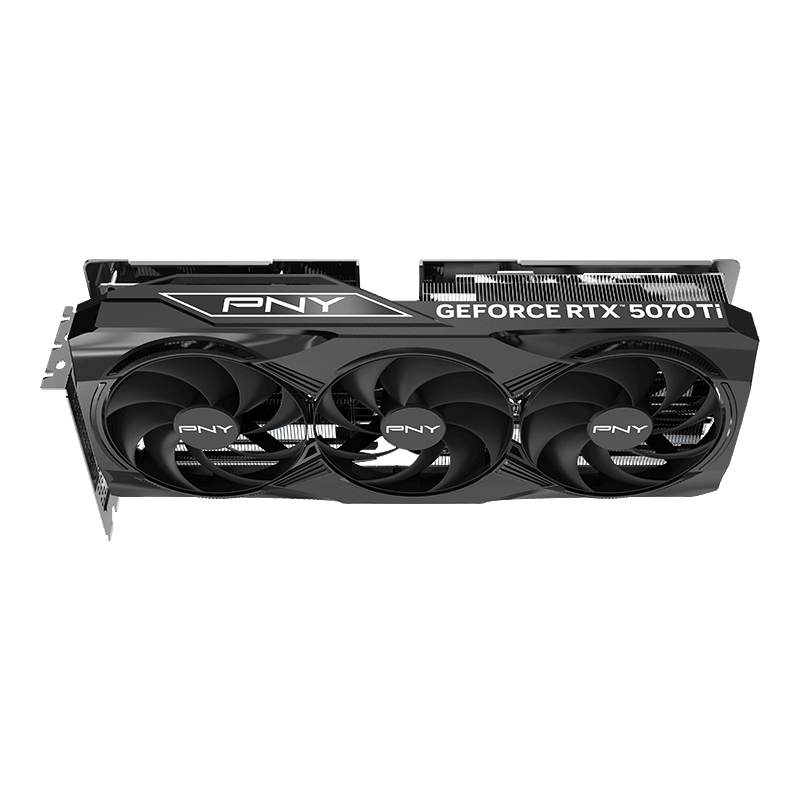

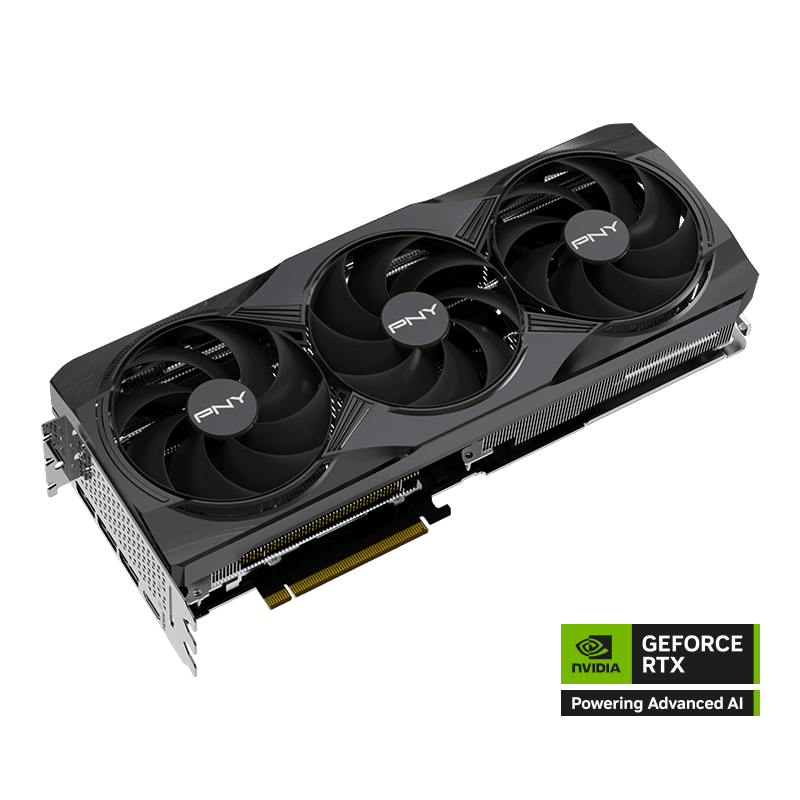

PNY GeForce RTX 5070 Ti
KEY FEATURES
• NVIDIA DLSS 4
• NVIDIA Reflex 2
• GDDR7 Graphics Memory
• NVIDIA® App
• PCI Express® Gen 5
• NVIDIA Broadcast
SYSTEM REQUIREMENTS
• PCI Express Gen 5 -compliant
motherboard with one 3-width x16
graphics slot
• Three 8-pin supplementary power
connectors
• 750 W or greater system power
supply2
• Microsoft Windows® 11 64-bit,
Windows® 10 64-bit, Linux 64-bit
• Internet connection1
PRODUCT SPECIFICATIONS
NVIDIA® CUDA Cores 8960
Clock Speed 2295 MHz
Boost Speed 2572 MHz
Memory Speed (Gbps) 28
Memory Size 16GB GDDR7
Memory Interface 256-bit
Memory Bandwidth (GB/s) 896
TDP 300 W
Outputs
DisplayPort 2.1b with UHBR20 (x3),
HDMI 2.1b
Multi-Screen 4
Resolution 4K 480Hz or 8K 165Hz with DSC
Power Input 1x16 (1x16 to 3x8 adapter included)
Bus Type PCI-Express 5.0 x16
PRODUCT INFORMATION
Card Dimensions
12.94” x 5.42” x 2.35”; 3 Slot
328.7 x 137.7 x 59.7mm; 3 Slot
Box Dimensions
15.92” x 7.82” x 4.05”
405 x 199 x 103mm
