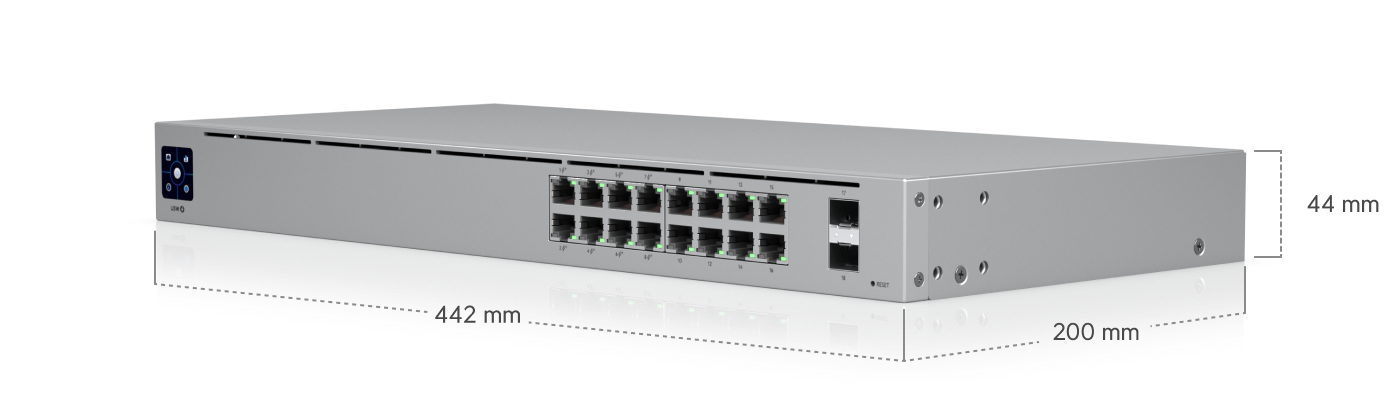

Ubiquiti UniFi Switch 16 PoE

Ubiquiti UniFi Switch 16 PoE – rack-mounted 16-port switch with PoE+ and SFP

Ubiquiti UniFi Switch 16 PoE (USW-16-PoE) is a fanless 1U switch with 16 Gigabit ports, eight of which provide PoE+, plus two Gigabit SFP ports for fibre uplinks. With 36 Gbps switching capacity, an integrated 1.3-inch touchscreen and full integration with UniFi Network, it serves as a stable network hub for small businesses, shops, surveillance systems and advanced home networks.

The SGCC steel chassis and fanless design allow the switch to be rack-mounted or placed in a work room without producing distracting fan noise.

Benefits

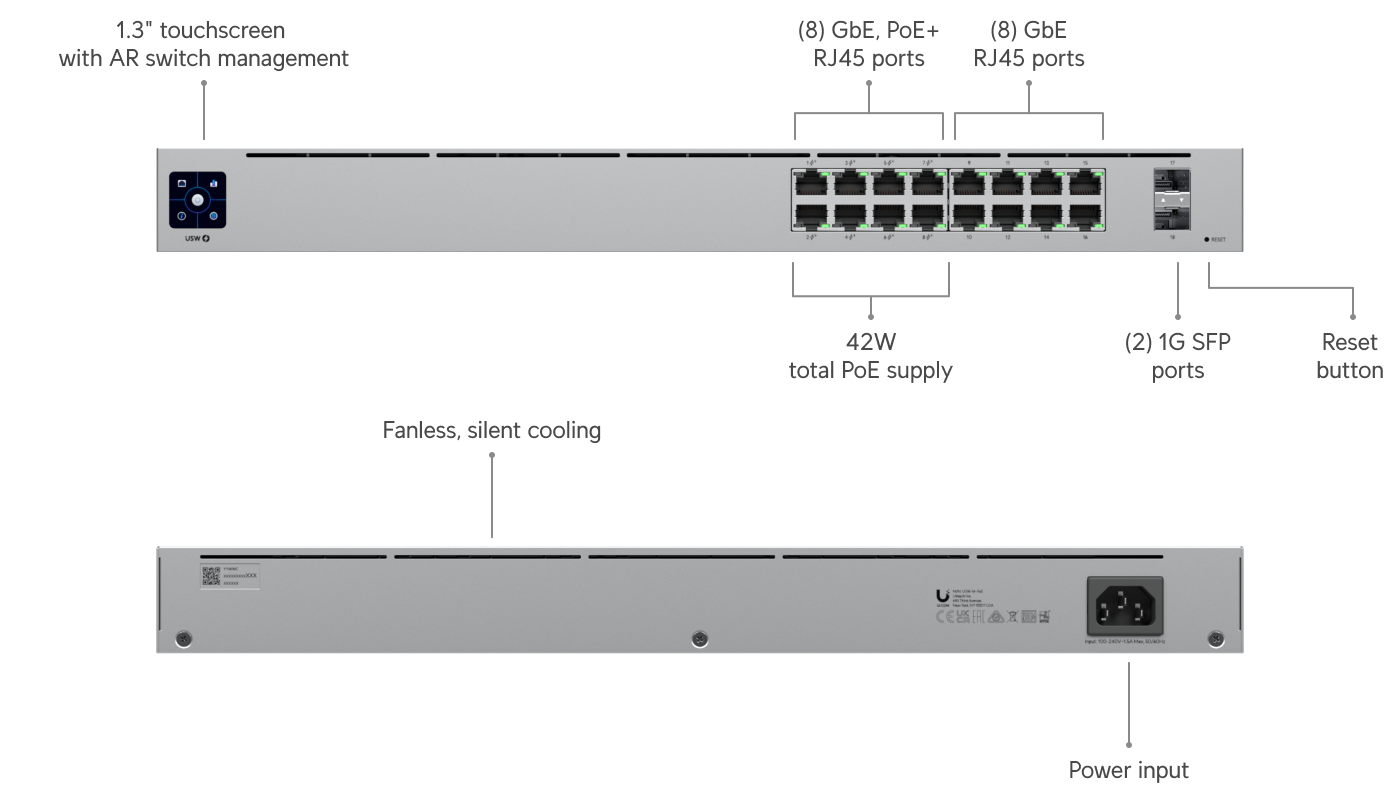

• 16 × Gigabit RJ45 ports (1G/100M/10M), 8 with PoE+
• 2 × Gigabit SFP ports for fibre uplinks
• 36 Gbps switching capacity and 27 Mpps forwarding capacity
• Fanless 1U SGCC steel construction with integrated power supply
• 1.3-inch touchscreen for local status information
• Support for up to 1,000 VLANs and 8,000 MAC addresses

Network hub for modern installations

USW-16-PoE is designed to act as the centre of a UniFi network where access points, cameras, phones and other network devices need both data and power over the same cable.

• 16 Gigabit Ethernet ports
• 8 PoE+ ports
• 2 SFP uplink ports
• 1U rack mounting or standalone placement

It fits equally well in a network cabinet or on a shelf in a work room. Rack depths from 400 to 1200 mm are supported.

Integrated PoE+ for access points and cameras

The switch's PoE+ functionality makes it easy to power compatible devices without separate power supplies.

• 8 PoE+ ports supporting IEEE 802.3af and 802.3at
• Up to 32 W per PoE+ port
• Total PoE budget of 42 W
• PoE status and consumption per port in UniFi Network

Ideal for UniFi access points, UniFi Protect cameras, VoIP phones and other PoE equipment with moderate power requirements.

Gigabit performance for high traffic loads

USW-16-PoE provides enough capacity to handle traffic across all ports without bottlenecks.

• Switching capacity: 36 Gbps
• Non-blocking throughput: 18 Gbps
• Forwarding capacity: 27 Mpps
• MAC address table: 8,000 entries
• Support for up to 1,000 VLANs

This provides stable performance even in networks with many clients and devices.

Two SFP ports for fibre connectivity

The two integrated SFP ports make it possible to expand the network with fibre links.

• 2 × Gigabit SFP ports
• Suitable as uplinks between switches
• Long cable distances over fibre
• Electrical isolation between buildings

This is useful for offices, warehouses and properties with multiple buildings.

Advanced Layer 2 features

The switch provides the tools needed to build secure and well-structured networks.

• VLAN management
• DHCP Snooping and Guarding
• Port Mirroring
• LACP Link Aggregation
• STP and RSTP
• IGMP Snooping
• 802.1X authentication
• Jumbo Frames

This makes the switch suitable for both professional networks and advanced home installations.

Full integration with UniFi Network

USW-16-PoE is managed centrally through UniFi Network together with other UniFi devices.

• Central administration and remote management
• Graphical network overview and topology view
• VLAN configuration
• Traffic monitoring per port
• Real-time PoE status

All administration is handled from the same interface as the rest of the UniFi environment.

Fanless and quiet operation

The switch uses passive cooling and has no fans.

• Completely silent operation with no moving parts
• Heat dissipation 61.4 BTU/h
• Lower maintenance requirements
• High operational reliability

It can therefore be installed in work rooms, meeting rooms and other noise-sensitive environments, not only in a separate equipment room.

Robust construction for professional use

The chassis is made from steel and designed for long service life.

• SGCC steel chassis
• Rack-mountable 1U design
• Integrated 60 W power supply for 100–240 V AC
• ESD protection up to ±16 kV air discharge
• ESD protection up to ±12 kV contact discharge

The switch is built for continuous 24/7 operation.

Touchscreen for local status information

The built-in 1.3-inch touchscreen makes it easy to check switch status directly at the rack.

• System information
• Network status
• Device information
• Local troubleshooting

This is particularly useful during installation and service when no computer is available at the rack.

Good to know

• The total PoE budget is 42 W. Even though eight ports support PoE+, the budget is shared between them – add up the consumption of the devices you intend to connect before ordering.
• The eight ports without PoE+ are standard Gigabit ports without power delivery.
• The SFP ports are 1G. The switch has no 10G uplink.
• The operating temperature of −5 to +40 °C and humidity of 10–90% non-condensing mean the switch is intended for indoor use.

Technical specifications

Complete with

• SFP module for fibre or SFP-to-RJ45 module to use the uplink ports
• Ubiquiti UniFi Protect G5 Bullet or G5 Turret Ultra – PoE cameras for the surveillance system
• UniFi access point for WiFi 6 or WiFi 7 powered via PoE+
• UniFi Cloud Gateway or UniFi Express to run the UniFi Network controller
• Cat 6 or better network cable and a patch panel for a clean rack installation
• Installation, rack mounting and commissioning by PC & HiFi Örebro

Why choose Ubiquiti UniFi Switch 16 PoE

• 16 Gigabit ports plus two SFP uplinks in a single 1U chassis
• 36 Gbps switching capacity provides room for traffic across all ports simultaneously
• Fanless design allows it to be used in a work room without distracting noise
• Built-in touchscreen simplifies installation and troubleshooting on site
• Steel chassis and internal power supply – no external power brick taking up space

PC & HiFi Örebro recommends

We recommend UniFi Switch 16 PoE when you have outgrown an 8-port switch and want a proper network hub with room for fibre uplinks. Its main strength is the combination of 16 ports, two SFP ports and completely fanless operation in a steel chassis – it can be rack-mounted or placed in a work room without being heard. Keep in mind that the total PoE budget is 42 W despite having eight PoE+ ports; if you plan to power many access points or cameras at the same time, calculate their total consumption first, and for larger camera installations a switch with a higher PoE budget is a better choice. If you need a 10G uplink, the 1G SFP ports are not sufficient and you should instead look at a Pro or Aggregation model.
